NawGate

Backend-enforced delegated access for autonomous Agents, built on the Volc Agent Launchpad.

NawGate keeps Human, Agent, and Run authority separate. A human’s access does not automatically become an Agent’s access: the backend owns Agent identity and grants, each Run receives short-lived authority, and every registered protected action is decided and enforced at RuntimeGateway.

The repository also preserves the starter platform: Agent CRUD, a browser Playground, persistent workspaces, multi-turn Codex sessions, local/container execution, and Ark or OpenAI-compatible model configuration.

[!WARNING] NawGate is a hackathon proof of concept. It protects registered actions routed through agentctl and RuntimeGateway; it does not intercept arbitrary Codex shell commands, filesystem operations, or network requests. Do not use real production data or credentials. See SECURITY.md.

The three independent layers

Layer	Current implementation	Responsibility
NawGate middleware	Fastify services, `bouncer-v5`, `risk-v1`, `RuntimeGateway`	Identity, policy, approval, enforcement, revocation, and safe evidence.
Agent Runtime	Codex CLI in a host process or disposable container	Executes Agent tasks, edits workspace files, and may request registered actions through `agentctl`.
Model provider	Volcengine Ark or an OpenAI-compatible Responses API	Supplies model inference to the Runtime and optional Team DAG planner; it is never an authorization authority.

Codex CLI is the Agent Runtime adapter used by this Launchpad implementation; it is not an architectural dependency of NawGate. A different Agent Runtime can integrate by receiving backend-issued Run credentials and routing its registered protected actions through RuntimeGateway.

Screenshots

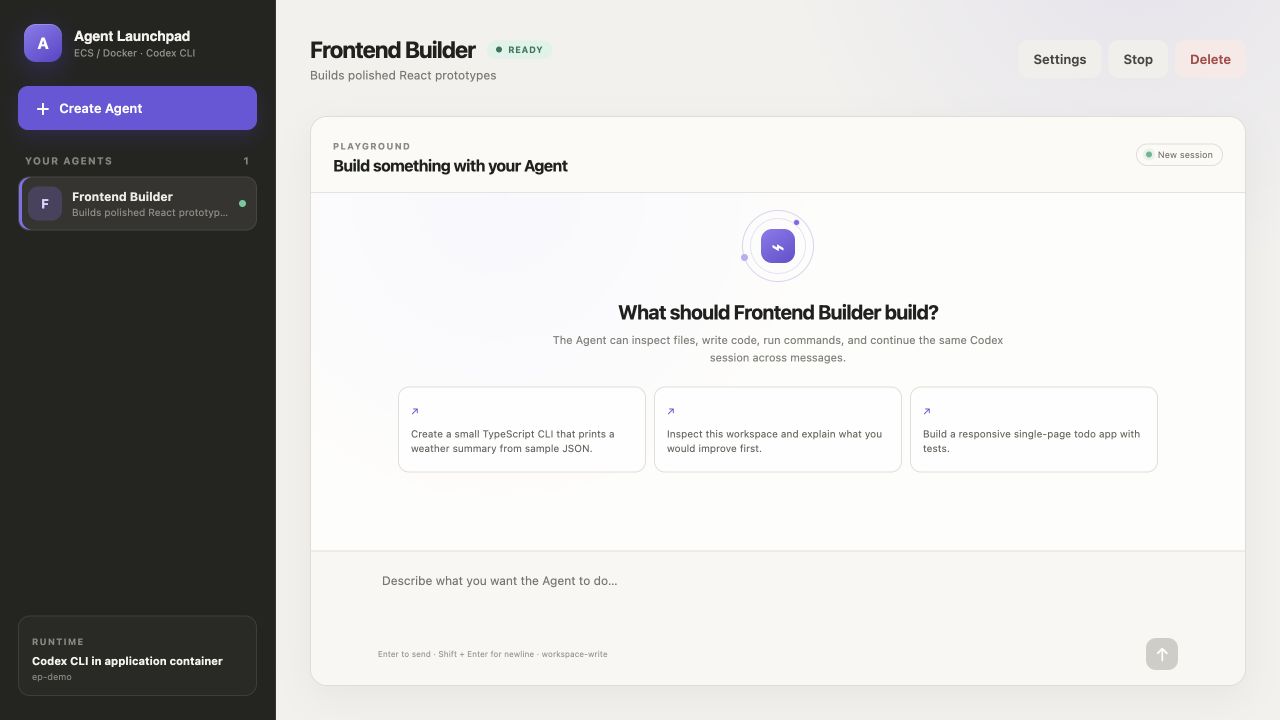

Agent Playground

Agent Playground showing lifecycle controls, starter prompts, and the Agent Runtime

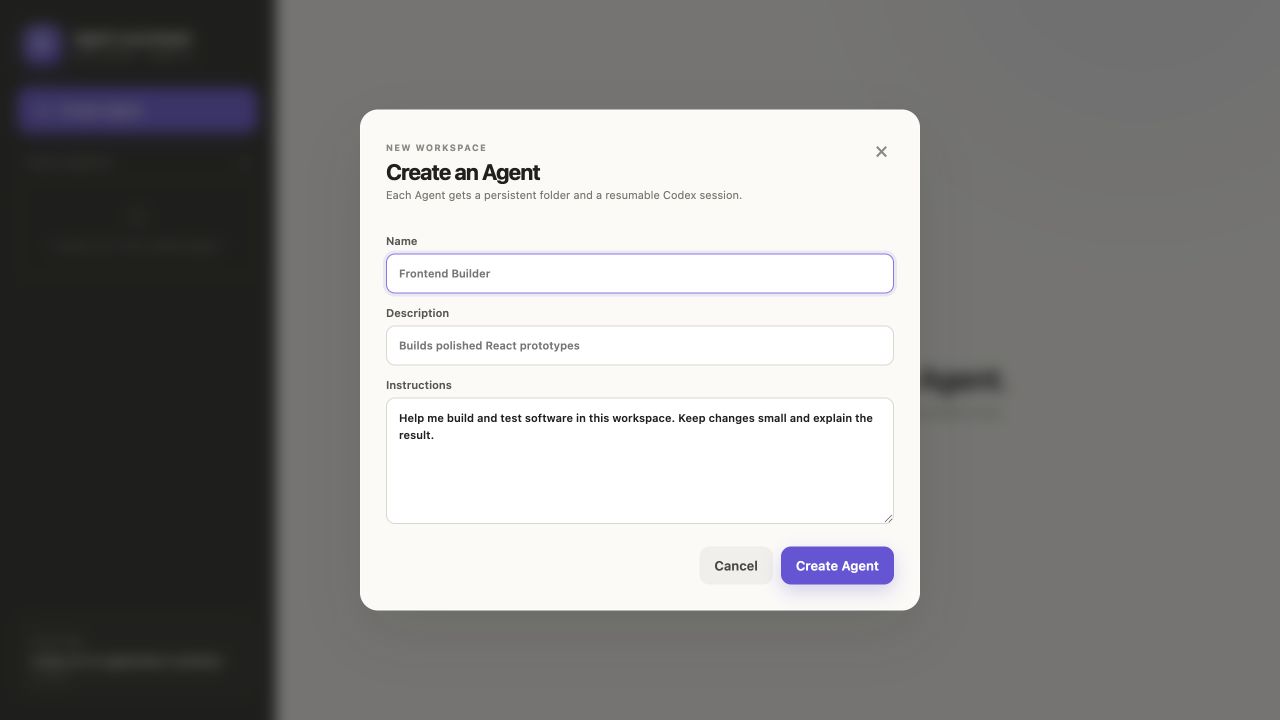

Create an Agent

Create Agent form showing name, description, and workspace instructions

Implemented capabilities

Starter Agent platform

React/TypeScript Web UI and Fastify control plane.
Agent create, edit, start, stop, and delete lifecycle.
Browser Playground with asynchronous Run state.
Persistent Agent workspaces and Codex thread resume across turns.
Local-process, disposable-container, Docker Compose, and Volcengine ECS profiles.
Volcengine Ark and OpenAI-compatible Responses API providers.

Bouncer identity and authorization

Human ≠ Agent ≠ Run identity separation.
Backend-owned Agent ownership and User A/User B isolation.
Scoped, short-lived Runtime credentials that fail closed when missing, malformed, expired, or revoked.
PolicyEngine decides; RuntimeGateway enforces and owns the final protected side effect.
Deterministic bouncer-v5 policy and backend-derived risk-v1 tiers.
ALLOW, DENY, and REQUIRE_APPROVAL outcomes with unknown action, resource, identity, or authority denied by default.
Owner-resource allow, cross-user/cross-Team denial, and unknown-resource denial.

Delegation, approval, and revocation

Owner approval for medium/high-risk actions.
Critical owner-plus-independent-reviewer approval using two distinct eligible humans.
Exact, expiring, revocable, Run-bound, one-use capability claims.
Approval cannot override cross-owner, unknown-resource, malformed-identity, expired, or revoked hard denies.
Atomic capability consumption, idempotent same-request retry, payload and destination substitution rejection, and replay denial.
Run and Agent Team Grant revocation invalidates pending/approved authority.
Serialized final pre-side-effect recheck denies a queued action if authority changes before execution.

Team authority and multi-Agent execution

Backend-owned Team memberships and persistent Agent Team Grants.
Independent viewer, editor, and admin roles, action scopes, expiry, bundle evidence, and explicit grant revocation.
Restricted Team-file JIT access without mutating the Agent’s persistent role.
Same-owner Team execution; enrolling an Agent never bypasses cross-user Agent isolation.
Optional model-assisted Team DAG planning with validation and deterministic fallback.
Dependency-ready parallel execution plus a shared blackboard for sanitized artifacts and created-file references.

Evidence and safety

Deterministic DLP masking before prompts, outputs, audit explanations, or flight recordings are persisted.
Redacted Delegation Receipts with policy, risk, authority, approval, and side-effect evidence—never credentials or protected payloads.
Globally sequenced SHA-256 audit chaining after redaction.
Audit-integrity quarantine: detected tampering keeps evidence readable but blocks new audit writes and registered protected side effects.
Owner-scoped flight data recording and replay for completed Playground Runs.
Local/demo Security Lab exercising the real RuntimeGateway for allow, deny, JIT, replay, forged-input, revocation, and queued stale-allow scenarios.

Synthetic TikTok-oriented controls

Registered content.moderate, content.disclose, content.publish, and content.export actions.
Closed purpose set and backend-owned organisation → business centre → account → asset hierarchy.
Registered destination catalogue and server-side synthetic credential broker.
Moderation returns aggregate evidence without raw protected content; disclosure, publish, and export preserve exact account, asset, purpose, destination, version, and approval bindings.
These resources and destinations are synthetic. The local adapter makes no external TikTok or arbitrary URL call.

Selected middleware track: Bouncer

NawGate’s primary TechJam story is backend-enforced identity and authorization. The model may request an action, but it cannot choose the authenticated human, Agent owner, Run, Team, grant, risk tier, approval outcome, or protected side effect. Those facts are resolved and enforced by trusted backend services.

User A’s Agent can read project-a; it cannot read User B’s project-b. Production deployment pauses for the owner, finalizes one exact one-use claim, executes at most once after a final authority recheck, and produces redacted evidence. See the NawGate overview, standards alignment, and complete demo script.

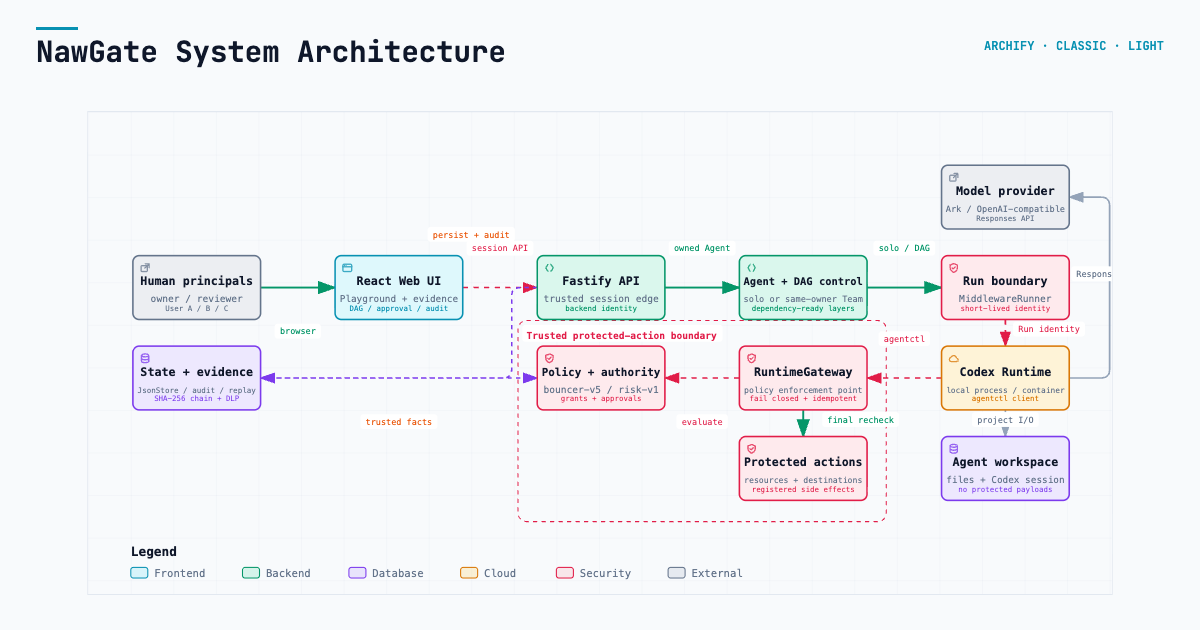

Architecture

Explore the interactive system architecture, Agent/Team Run workflow, and protected-action sequence. GitHub-readable companions are available for the architecture, workflow, and sequence.

flowchart LR
  Human[Human principal] --> UI[React Web UI]
  UI --> API[Fastify control plane]
  API --> Agent[AgentService]
  Agent --> Route{Solo or Team Run}
  Route --> Solo[MiddlewareRunner]
  Route --> Team[TeamOrchestrator and TeamDAGRunner]
  Team --> Solo
  Solo --> Runtime[Agent Runtime: current adapter Codex CLI]
  Runtime --> Provider[Ark or OpenAI-compatible model]
  Runtime -. registered action via agentctl .-> Gateway[RuntimeGateway]
  Gateway --> Policy[bouncer-v5, risk-v1, grants, approvals]
  Gateway --> Protected[Protected resources and destinations]
  API --> State[(JsonStore, audit chain, flight replay)]
  Team --> State
  Gateway --> State

What judges can verify

Capability	Demo action	Expected evidence
Agent lifecycle and multi-turn continuity	Follow workspace persistence.	Two successful Runs reuse one workspace and Codex thread.
Deterministic DLP	Submit the sample key/email prompt in the DLP step.	UI and persisted evidence contain redaction markers, not the submitted secret/PII.
Owner allow and cross-user hard deny	Run the authorization checks.	RuntimeGateway records ALLOW/SUCCESS for `project-a` and DENY/no side effect for `project-b`.
Approval and one-use authority	Run the restricted JIT approval.	Owner approval issues and consumes one exact claim; JIT succeeds once without changing the persistent Viewer role.
Team DAG and blackboard	Run the Team execution workflow.	Validated DAG, dependency-ready tasks, per-Agent output, and shared artifacts appear.
Team grant and restricted-file JIT	Follow Team enrollment and the Security Lab JIT flow.	Viewer remains viewer; exact temporary file authority succeeds once.
Revocation race protection	In the Security Lab, run Queued after revoke.	Initially allowed queued action becomes terminal DENY with no side effect.
Audit integrity and flight replay	Follow audit and replay.	Integrity state, hash-linked redacted events, and owner-only sanitized Run replay are visible.
Full fail-closed scenario set	In the Security Lab, run forged-input, replay, and Run/grant revocation checks.	Real-gateway denial and revocation evidence appears without a protected side effect.

For the required three-minute recording, use sections 1, 2, 5, and 6 of the demo guide. Treat the Team membership and DAG sections as an extended path when additional time is available.

Quick start: complete judge demo

npm run poc is the canonical profile. It runs the React/Fastify control plane on the host and starts every Agent turn in a disposable container containing Codex CLI and agentctl.

1. Requirements

macOS or Linux.
Node.js 22+ and npm 10+.
One running container engine: Docker, Colima, or Podman.
One Responses-capable model and API key from either Ark or an OpenAI-compatible provider.

Check the current terminal:

node --version
npm --version
docker info     # Docker Desktop, Docker Engine, or Colima
podman info     # Use this instead when running Podman

Only one engine is required. If Node 22 is installed with Homebrew on macOS:

brew install node@22
export PATH="$(brew --prefix node@22)/bin:$PATH"
hash -r
node --version

With nvm on macOS or Linux:

nvm install 22
nvm use 22
node --version

2. Clone and configure

git clone https://github.com/CloudKai/NawGate.git
cd NawGate
cp .env.example .env
openssl rand -hex 24

Paste the generated value into APP_AUTH_TOKEN in .env, then choose exactly one provider.

Option A — Volcengine Ark:

MODEL_PROVIDER=ark
ARK_API_KEY=your-ark-api-key
ARK_MODEL=ep-your-responses-endpoint-id
ARK_BASE_URL=https://ark.cn-beijing.volces.com/api/v3

Option B — OpenAI or another OpenAI-compatible Responses endpoint:

MODEL_PROVIDER=openai-compatible
OPENAI_API_KEY=your-provider-api-key
OPENAI_MODEL=your-responses-capable-model-id
OPENAI_BASE_URL=https://api.openai.com/v1

Only the selected provider’s values are used. OpenAI replaces Ark as the model endpoint; it does not replace the Agent Runtime.

3. Load the configuration and start

Run these as separate commands from the repository root:

set -a
source .env
set +a
npm run poc

Do not add trailing \ characters between these commands. A trailing backslash would join the next line into the same shell command.

The startup script:

verifies Node.js 22+ and the selected provider configuration;
detects Docker, Colima, or Podman;
chooses safe host data paths and a container-reachable gateway address;
installs dependencies when needed;
builds the disposable Agent Runtime image and application;
checks bind-mount and RuntimeGateway connectivity; and
starts the application on port 3000.

Codex CLI and agentctl are already installed in the POC image. A host Codex installation and CODEX_BIN are not required for this profile.

4. Open and verify

Open http://localhost:3000 and enter the same APP_AUTH_TOKEN stored in .env.

Create an Agent and run a normal first turn, then follow the complete NawGate demo for the protected-action, multi-Agent, DLP, audit, replay, and Security Lab flows.

Press Ctrl+C to stop. Remaining disposable Runtime containers for this POC instance are removed; Agent workspaces and conversations persist.

Default state locations:

macOS: ~/.volc-agent-launchpad/
Linux: .local/ in the repository
Custom: set LOCAL_POC_DATA_ROOT

Runtime profiles

Profile	Intended use	Agent Runtime	Host Codex	Complete Playground protected-action demo
`npm run poc`	Recommended judge demo	Disposable container per turn	No	Yes
Docker Compose	ECS-style packaged app	Codex inside the application container	No	No; local-process credential restriction applies
`npm run dev`	UI/API development	Host local process	Yes, through `CODEX_BIN`	No; use Security Lab or the container POC

Protected-action credentials are deliberately not injected into local-process Runs because the Agent and server child process share a filesystem. Normal coding Runs work in every profile; use npm run poc for the complete Playground → agentctl → RuntimeGateway demonstration.

Docker Compose

Docker Compose packages the control plane and Codex CLI together in an ECS-style application container. It is useful for deployment checks, but it is not the recommended full protected-action judge path.

cp .env.example .env
# Fill APP_AUTH_TOKEN and one provider section.
docker compose --env-file .env config
docker compose up --build

Open http://localhost:3000. Stop without deleting Agent data:

docker compose down

Local-process development

Use this profile for Web/API iteration. It requires Node.js 22+, dependencies, and a host Codex executable:

npm install
cp .env.example .env   # Skip if .env already exists.

The template leaves paths unset, so direct development uses safe repository defaults rather than /app. Optional explicit values are:

APP_DATA_DIR=.local/data
AGENT_WORKSPACE_ROOT=.local/workspaces
CODEX_HOME=.local/codex-home
NAWGATE_GATEWAY_URL=http://127.0.0.1:3000

macOS with the ChatGPT application:

export PATH="$(brew --prefix node@22)/bin:$PATH"
set -a
source .env
set +a
export CODEX_BIN="/Applications/ChatGPT.app/Contents/Resources/codex"
"$CODEX_BIN" --version
npm run dev

Linux with Codex CLI installed globally:

npm install --global @openai/codex@0.111.0
set -a
source .env
set +a
export CODEX_BIN="$(command -v codex)"
"$CODEX_BIN" --version
npm run dev

Web UI: http://localhost:5173
API: http://localhost:3000

If a Run reports spawn codex ENOENT, see troubleshooting below. This error is about the host Agent Runtime executable, not the Ark/OpenAI API key.

Configuration reference

Server and model provider

Variable	Template/default	Purpose
`HOST`	`0.0.0.0`	Control-plane listen address.
`PORT` / `PUBLIC_PORT`	`3000`	Server port and Compose host port.
`APP_AUTH_TOKEN`	Empty; required by POC	URL-safe browser unlock token. Use 24+ random characters.
`MODEL_PROVIDER`	`ark`	Choose `ark` or `openai-compatible`.
`ARK_API_KEY` / `ARK_MODEL`	Empty	Required only for the Ark provider.
`ARK_BASE_URL`	Beijing v3 endpoint	Ark OpenAI-compatible API base.
`OPENAI_API_KEY` / `OPENAI_MODEL`	Empty	Required only for the OpenAI-compatible provider.
`OPENAI_BASE_URL`	`https://api.openai.com/v1`	Responses API base; may be another compatible provider.

Runtime and NawGate

Variable	Template/default	Purpose
`RUNTIME_PROVIDER`	`local-process`	Direct-server default; `npm run poc` overrides to `container`.
`CODEX_BIN`	`codex` when unset	Host executable for local-process development only.
`CODEX_SANDBOX_MODE`	`workspace-write`	Inner Codex sandbox request; POC may fall back inside its outer container if Landlock is unavailable.
`CODEX_TIMEOUT_MS`	`600000`	Maximum Agent Runtime turn duration.
`CODEX_MAX_OUTPUT_BYTES`	`2097152`	Bound on captured Runtime output.
`NAWGATE_GATEWAY_URL`	Auto-selected	RuntimeGateway URL; leave unset for normal POC/local use.
`NAWGATE_APPROVAL_WAIT_MS`	`90000`	Bounded `agentctl` approval polling window; must be below `CODEX_TIMEOUT_MS`.
`NAWGATE_SECURITY_LAB_ENABLED`	`true` in demo template	Enables judge/demo Security Lab; set `false` outside an intentional demo.

Paths and container limits

Variable	Template/default	Purpose
`APP_DATA_DIR`	Auto/default	JsonStore and flight data. Leave unset for POC path selection.
`AGENT_WORKSPACE_ROOT`	Auto/default	Persistent Agent workspace root.
`CODEX_HOME`	Auto/default	Codex configuration and session storage.
`LOCAL_POC_DATA_ROOT`	Platform-specific	Optional root overriding all POC state locations.
`CONTAINER_ENGINE`	Auto-detected by POC	Force `docker` or `podman`; Colima uses the Docker CLI.
`CONTAINER_RUNTIME_IMAGE`	`volc-agent-runtime:local`	Disposable Agent Runtime image name.
`CONTAINER_CPU_LIMIT`	`2`	CPU limit per Runtime container.
`CONTAINER_MEMORY_LIMIT`	`2g`	Memory limit per Runtime container.
`CONTAINER_PIDS_LIMIT`	`256`	Process limit per Runtime container.

See .env.example for build mirror, package, user, and instance overrides. Pre-rename environment aliases are not supported; use NAWGATE_*.

Troubleshooting

Symptom	Cause and fix
`Node.js 22+ is required; found v20...`	Select Node 22 in the same terminal: `nvm use 22`, or prepend Homebrew’s `node@22` directory to `PATH`, then run `hash -r`.
`EADDRINUSE ... port 3000`	Another server owns the port. Run `lsof -nP -iTCP:3000 -sTCP:LISTEN`, verify the PID, and stop only that stale process—or use the healthy existing instance.
`ENOENT ... mkdir '/app'`	An older host `.env` exported container-only paths. Remove/comment `APP_DATA_DIR=/app/data`, `AGENT_WORKSPACE_ROOT=/app/workspaces`, and `CODEX_HOME=/app/codex-home`, or migrate values from the current template.
No Docker/Colima/Podman engine found	Start one engine and verify `docker info` or `podman info`. Leave `CONTAINER_ENGINE` unset for auto-detection.
Agent Runtime cannot reach `127.0.0.1:3000`	An older `.env` fixed `NAWGATE_GATEWAY_URL`. Remove/comment it so `npm run poc` selects the container-reachable host address.
Browser token is invalid	Enter the exact `APP_AUTH_TOKEN` loaded before startup. Restart the server after changing `.env`; do not print the token during a demo.
Provider/model not configured	Ensure `MODEL_PROVIDER` matches the filled Ark or OpenAI section and the model supports the Responses API.
`spawn codex ENOENT`	Only local-process development needs host Codex. Set `CODEX_BIN` to a working absolute path and restart, or use `npm run poc`.
Bind mount rejected	Set `LOCAL_POC_DATA_ROOT` to a directory shared with Docker/Colima/Podman.

More platform-specific help is in Local POC.

Deployment

Existing-ECS deployment:

cp .env.example .env.production
# Fill APP_AUTH_TOKEN and the selected provider values.
./scripts/deploy-existing-ecs.sh .env.production

Terraform deployment:

cp .env.example .env.production
cp deploy/volcengine/terraform.tfvars.example deploy/volcengine/terraform.tfvars
# Fill both files, then export the Volcengine infrastructure credentials.
./scripts/deploy-volcengine.sh

Set NAWGATE_SECURITY_LAB_ENABLED=false outside an intentional protected demo.

Scope and factual limitations

NawGate protects only registered actions routed through agentctl and RuntimeGateway; it does not intercept arbitrary Agent Runtime activity.
Protected credentials are not injected into local-process Runs; use the disposable-container POC for the complete protected-action Playground demo.
Protected resources remain outside Agent workspaces.
Disposable containers are not hardened multi-tenant or network isolation.
JsonStore, Team DAG orchestration, and blackboard state are single-process POC components without high availability or distributed queues.
Audit chaining is tamper-evident, not externally immutable.
Model providers and model-assisted DAG planning are never authorization authorities.
TikTok-oriented content, destinations, and credentials are synthetic and no external TikTok call occurs.

Validation

npm run check
CONTAINER_ENGINE=docker npm run test:container  # Requires a real container engine
docker compose --env-file .env config
terraform fmt -check -recursive deploy/volcengine

npm run check runs TypeScript checks, deterministic tests, and both builds. npm run test:container is separately gated and must not be reported as passed unless a real Docker/Podman container completed it.

Documentation

License

MIT

This site is open source. Improve this page.
